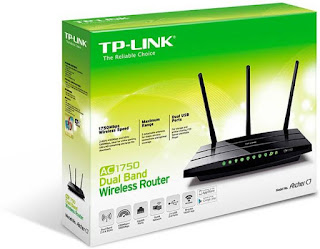

Archer C7 | AC1750 Wireless Dual Band Gigabit Router

https://amzn.to/2X3Nh46

Archer C7 | AC1750 Wireless Dual Band Gigabit Router
https://amzn.to/2X3Nh46

TP-Link AC1750 Dual Band Wireless

Archer C7 | AC1750 Wireless Dual Band Gigabit Router

https://amzn.to/2X3Nh46

AC1750 Wireless Dual Band Gigabit Router
Archer C7

• Supports 802.11ac standard - the next generation of Wi-Fi
• Simultaneous 2.4GHz 450Mbps and 5GHz 1300Mbps connections for1.75Gbps of total available bandwidth
• Dual USB Ports - easily share a printer locally and files & media with networked devices or remotely via FTP server
• Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network

Cisco RV016 Multi-WAN VPN Router
Cisco RV016 Multi-WAN VPN Router

FACTORY DEFAULT ::

TP-Link Archer C7 AC1750 v4
https://openwrt.org/toh/hwdata/tp-link/tp-link_archer_c7_v4

https://downloads.openwrt.org/releases/19.07.3/targets/ar71xx/generic/

Upload lede-ar71xx-generic-archer-c7-v4-squashfs-factory.bin via Web interface
https://github.com/lede-project/source/commit/9887afb1afcf387f6892315413e610a6816df463

TP-Link Archer C7 v4 is a dual-band AC1750 router, based on Qualcomm/Atheros
QCA9561+QCA9888.

Specification:

- 775/650/258 MHz (CPU/DDR/AHB)
- 128 MB of RAM (DDR2)
- 16 MB of FLASH (SPI NOR)
- 3T3R 2.4 GHz
- 3T3R 5 GHz
- 5x 10/100/1000 Mbps Ethernet
- 7x LED, 2x button
- UART header on PCB

Flash instruction:
1. Upload lede-ar71xx-generic-archer-c7-v4-squashfs-factory.bin via Web interface

Flash instruction using TFTP recovery:
1. Set PC to fixed ip address 192.168.0.66
2. Download lede-ar71xx-generic-archer-c7-v4-squashfs-factory.bin
and rename it to ArcherC7v4_tp_recovery.bin
3. Start a tftp server with the file tp_recovery.bin in its root directory
4. Turn off the router
5. Press and hold Reset button
6. Turn on router with the reset button pressed and wait ~15 seconds
7. Release the reset button and after a short time
the firmware should be transferred from the tftp server
8. Wait ~30 second to complete recovery.

Flash instruction under U-Boot, using UART:

1. tftp 0x81000000 lede-ar71xx-...-sysupgrade.bin
2. erase 0x9f040000 +$filesize
3. cp.b $fileaddr 0x9f040000 $filesize
4. reset

https://help.hotspotsystem.com/knowledgebase/remove-uninstall-dd-wrt-or-3rd-party-firmware-and-revert-back-to-the-original-firmware

https://downloads.openwrt.org/releases/19.07.3/targets/ar71xx/generic/

Hopefully this wording is correct:
-------------------------------------------

Revert C7 v4 back to stock using a LEDE intermediate FW revised

1. First change the PC NIC setting to:
- IP address: 192.168.0.66   //   192.168.0.86
- subnet mask 255.255.255.0
- default gateway 192.168.0.1
(this assumes you have a wired Ethernet connection to the Router),

2. Download TFPD32 Server v4.60 (Portable version);
http://tftpd32.jounin.net/tftpd32_download.html

3. Download the TP-Link C7 v4 factory firmware (be sure it's v4);
https://www.tp-link.com/ca/support/download/archer-c7/v4/
rename it to 'ArcherC7v4_tp_recovery.bin' (in separate folder w/ original file name to ID that file)

4. Download from LEDE Project;
https://downloads.openwrt.org/snapshots/targets/
then rename that to 'ArcherC7v4_tp_recovery.bin' also (in separate folder w/ original file name to ID that file)

5. First, using the renamed LEDE firmware (openwrt-ar71xx-generic-archer-c7-v4-squashfs-factory), run TFPD32, select the folder destination for the LEDE firmware renamed by clicking 'Show Dir',

6. Select the server interface from the list to be: 192.168.0.66

7. Turn off the router,

8. Press the reset button and keep it pressed, power up Router, keep holding the reset button until the WPS LED lights, then release,
TFTP will transfer the LEDE firmware to the router. After that will install the LEDE firmware but without web interface,

9. Wait until the router updates the firmware.

10. Repeat that process with the TP link original firmware (renamed) using the same steps from 5 to 9.
